Type N (Nanoperforations - wall 20 mm)
Type N - 5,8 % — nvt/nvt

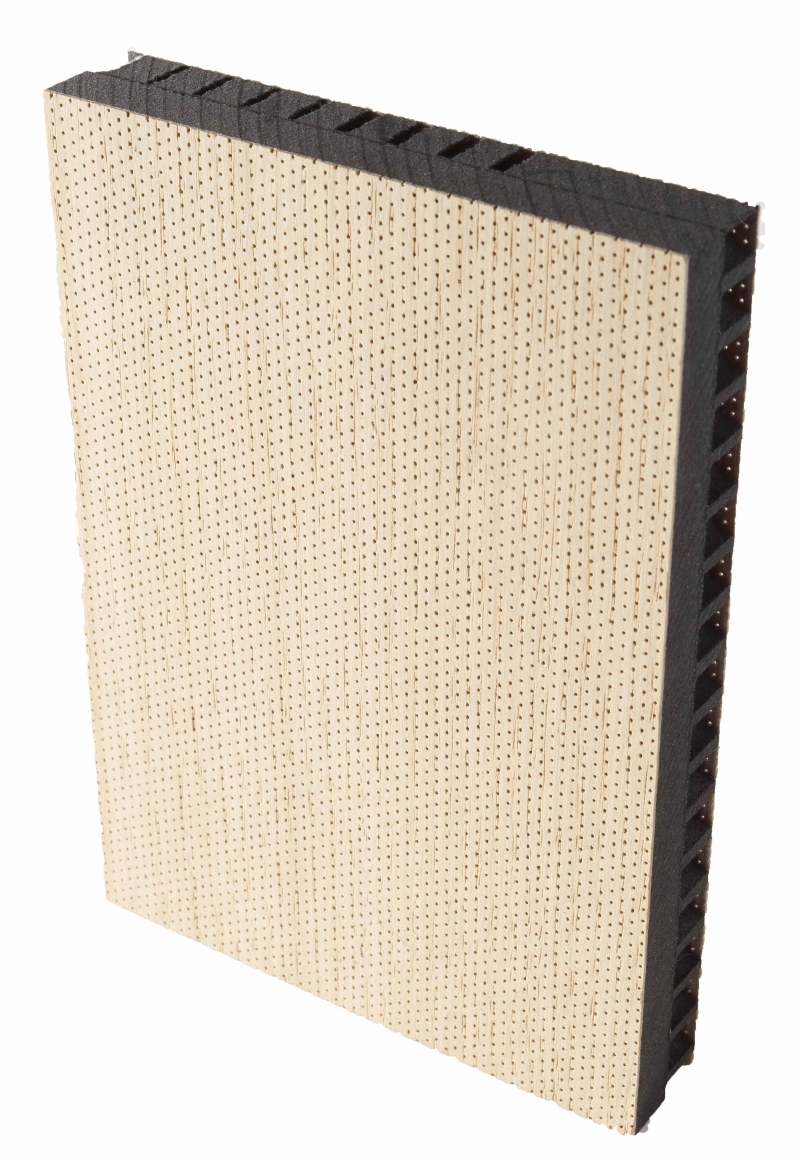

The acoustic absorbing panels Type N are equipped with standard 4,7 % microperforations with a diameter of 1.1 mm (linear 3/3/1.1). They consist of a black moisture repellent core in MDF of 2 x 9 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 16 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total thickness of 89 mm: 0.75
- AlphaW in a setup with a total thickness of 39 mm: 0.70
|Thickness||+/- 20 mm|
|Composition of the material||A core of 2 x 9 mm in MDF black moisture repellent|
Real wood veneer or prefinished veneer of the Shinnoki® range
Acoustic absorbing non woven glass fibre tissue on the back
|Perforation||Type N with top layer perforations of 5.8%, core perforations of 44.2%: diameter of 0.5 mm (diagonally 1,97/1,97/0,5 mm).|
|Top layer||In one of six standard veneers or finished in one of the 16 prefinished veneers of the Shinnoki® range.|
Acoustic absorbing glass fibre tisue on the back.
Other veneers on request.
|Core||Black moisture repellent MDF|
On request: black flame retardant MDF (B-s1,d0)
|Measurements||3000 x 1200 x 20 mm (Shinnoki®)|
3000 x 1200 x 19 mm (Real wood veneer)
Made-to-measure on request
