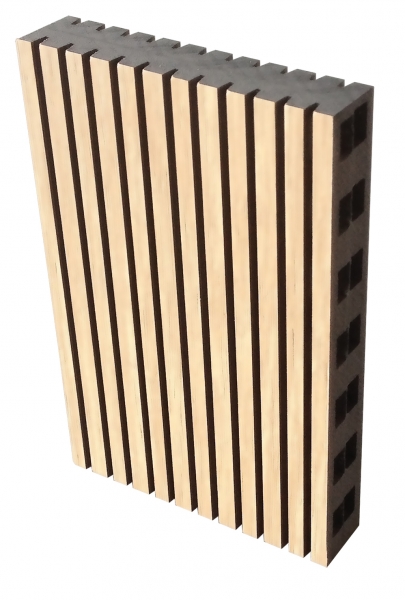

Type Ds (Small blade - Transversal core - wall 20 mm)
A core of 2 x 9 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue in the center.
Top layer in one of the six standard veneers or finished in one of the 16 prefinished veneers of the Shinnoki® range.
Test setup 90 mm Test setup 40 mm
Type Ds - 17,5 % — 5,2 mm/2,8 mm
The acoustic absorbing panels Type Ds are equipped with 17,5 % perforation, a blade of 5.2 mm and a groove of 2.8 mm. They consist of a black moisture repellent core in MDF of 2 x 9 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 16 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total thickness of 90 mm: 0.85
- AlphaW in a setup with a total thickness of 40 mm: 0.75
Download technical sheet Request sample
|Thickness||+/- 20 mm|
|Composition of the material||A core of 16 mm in MDF black moisture repellent|
Real wood veneer or prefinished veneer of the Shinnoki® range
Acoustic absorbing non woven glass fibre tissue on the back
|Perforation||17,5 % perforation: front vertical grooves and blades in combination with transversal continuous slits in the core|
Blade/groove: 5.2/2.8 mm
|Top layer||In one of six standard veneers or finished in one of the 16 prefinished veneers of the Shinnoki® range.|
Acoustic absorbing glass fibre tisue on the back.
Other veneers on request.
|Core||Black moisture repellent MDF|
On request: standard MDF, black flame retardant MDF (B-s1,d0)
|Measurements||3030 x 128 x 20 mm (Shinnoki®)|
3030 x 128 x 19 mm (Real wood veneer)
Made-to-measure on request
