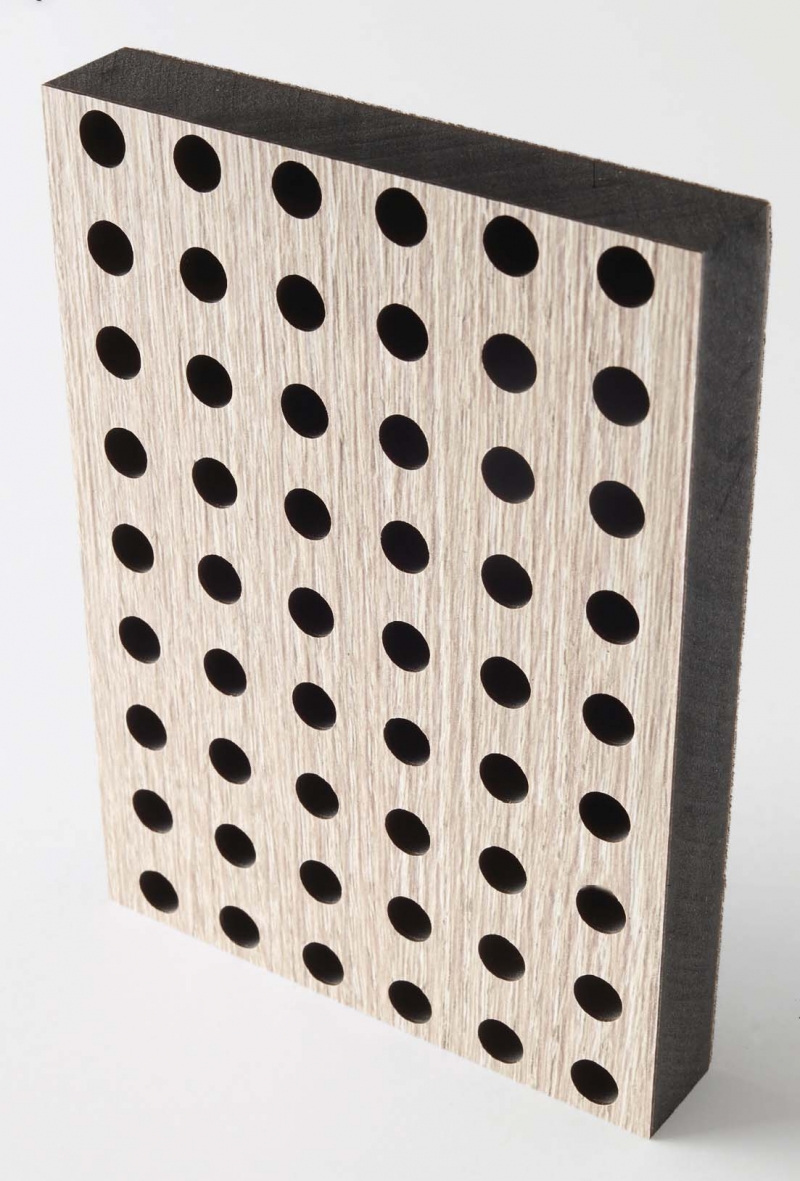

Type B (Drillings - wall 18 mm)
A core of 16 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue on the back.
Continuous drillings - distance between the holes is a multiple of 16 or 32 mm - Diameter is optionally
Test setup 88 mm Test setup 38 mm
Type B - 19,6 % — nvt/nvt
The acoustic absorbing panels Type B combine a pattern of continuous drillings with a certain degree of perforation - various options. They consist of a black moisture repellent core in MDF of 16 mm - on request black fireretardant MDF or multiplex birch CP/CP, spruce or poplar - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total thickness of 88 mm: 0.65
- AlphaW in a setup with a total thickness of 38 mm: 0.65
Download technical sheet Request sample
| Thickness | +/- 18 mm |
|---|---|
| Weight | 12 kg/m² |
| Composition of the material | A core of 16 mm in MDF Real wood veneer or prefinished veneer of the Shinnoki® range Acoustic absorbing non woven glass fibre tissue on the back |
| Perforation | Combination of continuous drillings (Dobo) and degree of perforation (Perfo): Dobo 16 x 16 x 5 mm - Perfo: 7.7 % Dobo 16 x 16 x 6 mm - Perfo: 11.0 % Dobo 16 x 16 x 8 mm - Perfo: 19.6 % Dobo 16 x 16 x 10 mm - Perfo: 30.7 % Dobo 32 x 32 x 6 mm - Perfo: 2.8 % Dobo 32 x 32 x 8 mm - Perfo: 4.9 % Dobo 32 x 32 x 10 mm - Perfo: 7.7 % |
| Top layer | In one of six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range. Acoustic absorbing glass fibre tisue on the back. Other veneers on request. |
| Core | Black moisture repellent MDF On request: black flame retardant MDF (B-s1,d0) or multiplex birch CP/CP, spruce or poplar |
| Measurements | 3040 x 1200 x 18 mm (Shinnoki®) 3040 x 1200 x 17 mm (Real wood veneer) Made-to-measure on request |
