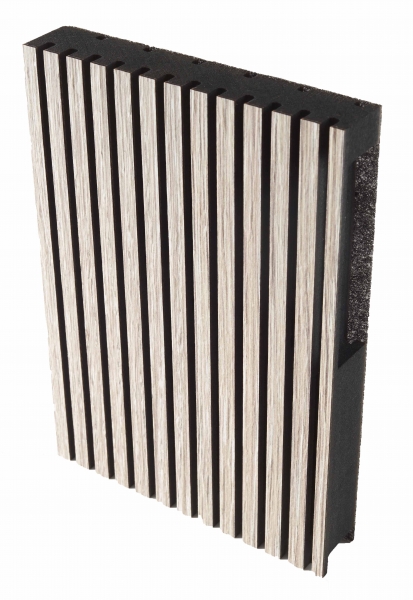

Type F (Fine - Wall 18 mm)
A core of 16 mm in black moisture repellent MDF with acoustic absorbing spun glass fabric on the back.
Top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
Test setup 88 mm Test setup 38 mm
Type F - 16 % — 5,2 mm/2,8 mm
The acoustic absorbing panels Type F are equipped with standard 16 % of continuous slits, a blade of 13.2 mm and a groove of 2.8 mm. They consist of a black moisture repellent core in MDF of 16 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total thickness of 88 mm: 0.80
- AlphaW in a setup with a total thickness of 38 mm: 0.70
Download technical sheet Request sample
| Thickness | +/- 18 mm |
|---|---|
| Weight | 11 kg/m² |
| Composition of the material | A core of 16 mm in MDF black moisture repellent Real wood veneer or prefinished veneer of the Shinnoki® range Acoustic absorbing non woven glass fibre tissue on the back |
| Perforation | Standard 6.8 % continuous slits Blade/groove: 13.2/2.8 mm |
| Top layer | In one of six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range. Acoustic absorbing glass fibre tisue on the back. Other veneers on request. |
| Core | Black moisture repellent MDF On request: black flame retardant MDF (B-s1,d0) |
| Measurements | 3030 x 128 x 18 mm (Shinnoki®) 3030 x 128 x 17 mm (Real wood veneer)Made-to-measure on request |
