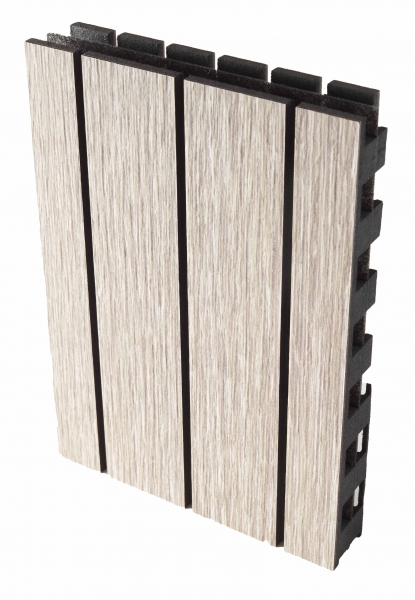

Type Dw (Transversal core - Broad blade - wall 20 mm)
A core of 16 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue on the back.
Top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
Type Dw - 4,35 % — 29,2 mm/2,8 mm
The acoustic absorbing panels Type Dw are equipped with standard 4.35 % of continuous slits, a blade of 29.2 mm and a groove of 2.8 mm. They consist of a black moisture repellent core in MDF of 16 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total thickness of 90 mm: 0.50
- AlphaW in a setup with a total thickness of 40 mm: 0.50
| Thickness | +/- 20 mm |
|---|---|
| Weight | 10,5 kg/m² |
| Composition of the material | A core of 16 mm in MDF black moisture repellent Real wood veneer or prefinished veneer of the Shinnoki® range Acoustic absorbing non woven glass fibre tissue on the back |
| Perforation | Standard 4.35 % continuous slits Blade/groove: 29.2/2.8 mm |
| Top layer | In one of six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range. Acoustic absorbing glass fibre tisue on the back. Other veneers on request. |
| Core | Black moisture repellent MDF On request: black flame retardant MDF (B-s1,d0) |
| Measurements | Measurements full panel 3030 x 1200 x 20 mm (Shinnoki®) 3030 x 1200 x 19 mm (Real wood veneer) Maesurements planks 3030 x 128 x 20 mm (Shinnoki®) 3030 x 128 x 19 mm (Real wood veneer) Made-to-measure on request |
