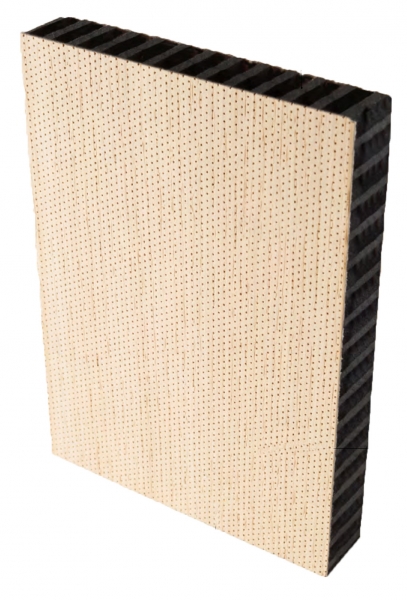

Type NL (Nano light perforations - wall 18 mm)
A core of 16 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue in the center.
Top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
Type NL - 5,8 % — nvt/nvt
The acoustic absorbing doors Type NL are equipped with 5.8 % perforation, a blade of 29.2 mm and a groove of 2.8 mm. They consist of a black moisture repellent core in MDF of 16 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total depth of 87 mm: 0.75
- AlphaW in a setup with a total depth of 37 mm: 0.65
| Thickness | +/- 18 mm |
|---|---|
| Weight | 10 kg/m² |
| Composition of the material | A core of 16 mm in MDF black moisture repellent Real wood veneer or prefinished veneer of the Shinnoki® range Acoustic absorbing non woven glass fibre tissue on the back |
| Perforation | Type NL wit top layer peforaions of 5,8%, core perforations of 44,2%: diameter of 0,5 mm (diagonal 1,97/1,97/0,5 mm) |
| Top layer | In one of six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range. Acoustic absorbing glass fibre tisue on the back. Other veneers on request. |
| Core | Black moisture repellent MDF On request: black flame retardant MDF (B-s1,d0) |
| Measurements | 3000 x 1200 x 18 mm (Shinnoki®) 3000 x 1200 x 17 mm (Real wood veneer) Made-to-measure on request |
