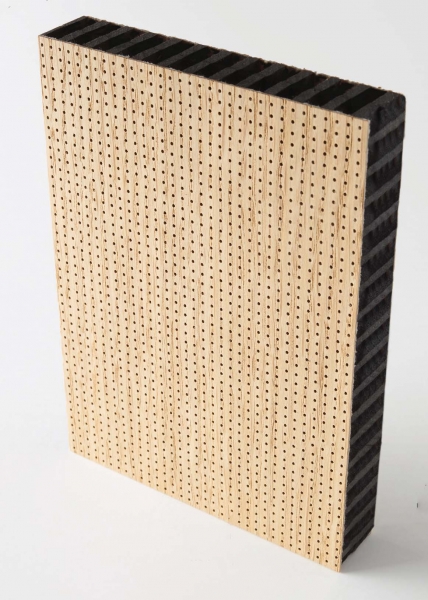

Type ML (Microperforations Light - wall 20 mm)
A core of 2 x 9 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue in the center.
Top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
Type ML - 4,7 % — nvt/nvt
The acoustic absorbing panels Type M are equipped with standard 4,7 % microperforations with a diameter of 1.1 mm (linear 3/3/1.1). They consist of a black moisture repellent core in MDF of 16 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
- AlphaW in a setup with a total thickness of 88 mm: 0.75
- AlphaW in a setup with a total thickness of 38 mm: 0.65
| Thickness | +/- 18 mm |
|---|---|
| Weight | 10 kg/m² |
| Composition of the material | A core of 16 mm in MDF black moisture repellent Real wood veneer or prefinished veneer of the Shinnoki® range Acoustic absorbing non woven glass fibre tissue on the back |
| Perforation | Type ML with top layer perforations of 10.6%, core perforations of 44.2%: diameter van 1,1 mm (lineair 3/3/1,1). |
| Top layer | In one of six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range. Acoustic absorbing glass fibre tisue on the back. Other veneers on request. |
| Core | Black moisture repellent MDF On request: black flame retardant MDF (B-s1,d0) |
| Measurements | 3000 x 1200 x 18 mm (Shinnoki®) 3000 x 1200 x 17 mm (Real wood veneer) Made-to-measure on request |
