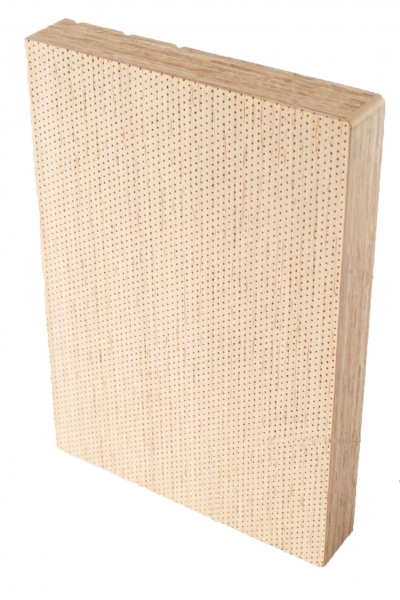

Type N (Nanoperforations - door 20 mm)

A core of 2 x 9 mm in black moisture repellent MDF with acoustic absorbing non woven glass fibre tissue in the center.
Top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.

Type N - 5,8 % — nvt/nvt


The acoustic absorbing panels Type N are equipped with standard 4,7 % microperforations with a diameter of 0.5 mm (diagonally 1,97/1,97/0,5 mm). They consist of a black moisture repellent core in MDF of 2 x 9 mm - on request black fireretardant MDF - with an acoustic absorbing non woven glass fibre tissue on the back and a top layer in one of the six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.

  • AlphaW in a setup with a total thickness of 500 mm: 0.60
  • AlphaW in a setup with a total thickness of 500 mm + Primawool: 0.70
 Request sample


Thickness+/- 20 mm
Weight11 kg/m²
Composition of the materialA core of 2 x 9 mm in MDF black moisture repellent
Real wood veneer or prefinished veneer of the Shinnoki® range
Acoustic absorbing non woven glass fibre tissue on the back
Edge band in veneer on 4 sides
PerforationType N with top layer perforations of 5.8%, core perforations of 44.2%: diameter of 0.5 mm (diagonally 1,97/1,97/0,5 mm).
Top layerIn one of six standard veneers or finished in one of the 18 prefinished veneers of the Shinnoki® range.
Acoustic absorbing glass fibre tisue on the back.
Other veneers on request.
Core Black moisture repellent MDF
On request: black flame retardant MDF (B-s1,d0)
MeasurementsMade-to-measure doors (closet & sliding)
Thickness +/- 20 mm (Shinnoki®)
Thickness +/- 19 mm (Real wood veneer)

Made-to-measure on request
